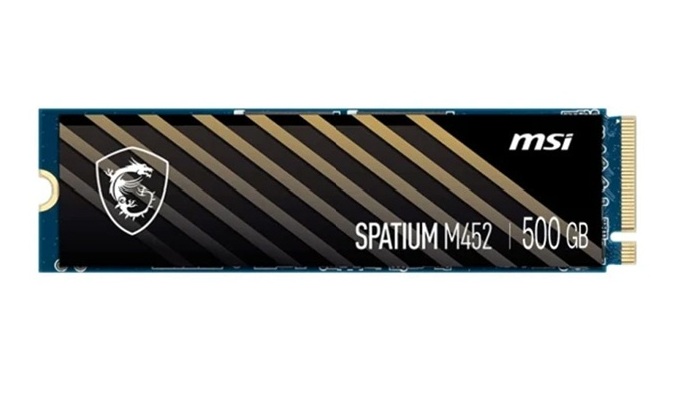

SPATIUM M452 PCIe 4.0 NVMe M.2 500GB, M.2 2280, PCIe Gen4x4 NVMe 1.4, 3D NAND, Phison E29T, 3600/3100 MB/s, 150TBW, 5Y Wty

SPATIUM M452 PCIe 4.0 NVMe M.2 500GB (S78-440K210-P83) PRODUCT SPECIFICATION Model Name SPATIUM M452 PCIe 4.0 NVMe M.2 Capacity 500GB Controller PHISON E29T Flash Memory 3D NAND Form Factor M.2 2280 Interface PCIe Gen4 x4, NVMe 1.4 (2CH) Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1 Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H) Sequential Read up to (MB/s) 3600 Sequential Write up to (MB/s) 3100 Random Read 4KB up to (IOPS) 470,000 Random Write 4KB up to (IOPS) 750,000 Idle Power PS3 (mW) 50 Low Power L1.2 (mW) 5 Operating Temperatures 0°C – 70°C Storage Temperatures -40°C – 85°C Terabytes Written (TBW) 150 Mean Time Between Failure (MTBF) Up to 1,500,000 Hours Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. Advanced Features TRIM (Performance Optimization, OS Support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) Pyrite (Encryption, Data Security)
